Metal-Clad Cable with two-, three-, of four-circuit THHN/THWN conductors, and a bare aluminum grounding/bonding conductor in constant contact with the armor, allowing it to serve as a redundant grounding path. Intended for use in accordance with the National Electrical Code®. Conductor constructions have the insulated conductors cabled together with a separator tape, displaying the identification print legend, wrapped around the assembly. The bare aluminum grounding/bonding conductor is cabled on the outside of the separator tape. An interlocked aluminum armor is applied over the entire construction.
Conductors
- Solid Conductors: Soft, uncoated copper per ASTM B3
- Stranded Conductors: Uncoated copper per ASTM B3, B8, B787
- Bare Grounding/Bonding Conductor: 8000 Series aluminum alloy per ASTM B800; Sizes 12 AWG – 8 AWG
Insulation
THHN/THWN-2 PVC (polyvinyl chloride) with color-coded nylon (polyamide) covering
Jacket
Aluminum-based alloy armor applied over the complete assembly
Industry Standards
UL 1569: E38918
UL 83: E15119
ASTM B3, B8, B787
ASTM B800
FT4/IEEE 1202
NFPA 70 (National Electrical Code), Article 330
Federal Specification A-A59544

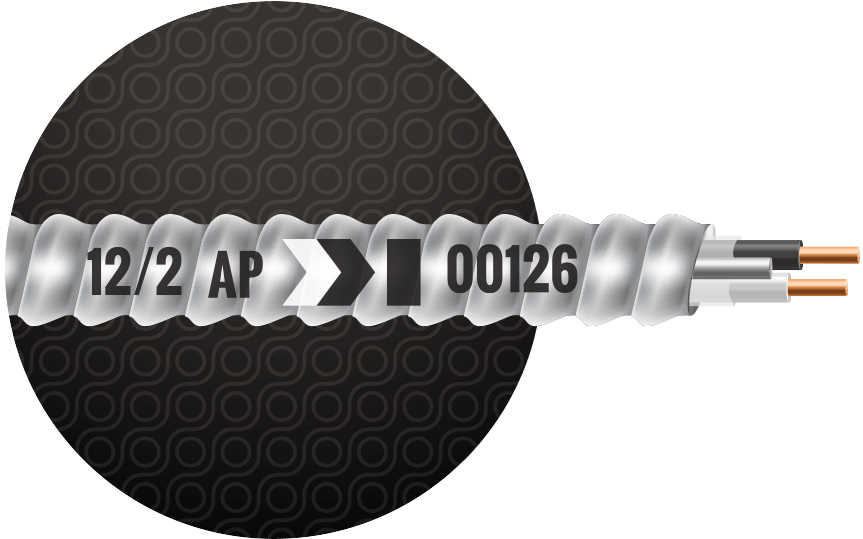

Surface Print
Armor Coding System:*
- Sequential Footage: shown every two feet
- Footage Marker: Black line = aluminum armor
- Chevron Colors: indicate number & color of conductors
- Chevron Direction: indicates recommended pull direction
- Cable Size: indicates wire gauge & number of conductors
*PATENT PENDING
