Product Features
Applications
May be used as service-entrance conductors and in other applications where SE cables are permitted when installed as specified by NEC® Article 230. May be used in dry, above-ground applications only at temperatures up to 90°C.
- residential
Conductors
Insulated Phase Conductors and Neutral
- Compact stranded AA-8000 Series aluminum alloy
Bare Equipment Grounding Conductor
- Compact stranded AA-8000 Series aluminum alloy
Insulation
Type XHHW-2 conductors
Black XLP (cross-linked polyethylene), rated 90°C in wet or dry locations
Polarity ID: A red stripe on one conductor’s insulation surface
Jacket
Gray, sunlight-resistant PVC (polyvinyl chloride) jacket over the complete assembly
Industry Standards
UL® 44 (insulated conductors)
UL® 854 Service Entrance Cables
Federal Specification A-A-59544
NFPA70: National Electrical Code®
RoHS Compliant

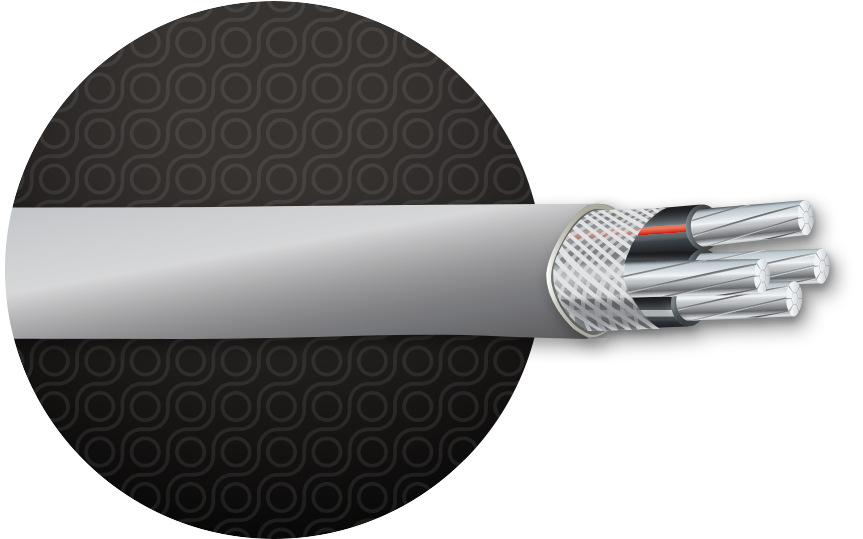

Assembly
Insulated and bare conductors are twisted together.
A glass-reinforced tape is applied over the conductors.
Surface Print
Sample: AA-8000 AL TYPE SE CABLE STYLE R XHHW-2 600V 3 CDRS. 2 AWG 1 CDR. 4 AWG (UL)
