Streamline your complex commercial and industrial electrical installations with our premium Multi-Neutral Metal Clad Cable, the optimal solution for powering multiple circuits efficiently and safely. This robust copper MC cable, available in versatile 12 AWG MC cable and 10 AWG MC cable sizes, is expertly engineered with high-quality THHN/THWN-2 insulated conductors. The defining feature is its multiple dedicated neutral conductors, providing a discrete neutral for each phase conductor. This design is crucial for modern electrical systems, preventing shared neutral problems and ensuring balanced loads, making it an ideal electrical cable for commercial buildings, office complexes, retail spaces, and multi-dwelling residential units requiring reliable power distribution.
Engineered for durability and performance, this armored electrical cable features soft, uncoated copper conductors (available in solid per ASTM B3 or stranded per ASTM B3, B8, and B787) ensuring excellent conductivity. The conductors are insulated with color-coded PVC and a nylon covering for easy identification and enhanced protection. The entire assembly, including a green insulated grounding conductor and an optional second insulated ground, is encased in a strong, interlocked aluminum armor jacket. This construction offers superior physical protection, making it a dependable heavy-duty MC cable for demanding environments.
This NEC compliant MC cable is designed for use in accordance with National Electrical Code Article 330, simplifying inspections and ensuring your projects meet stringent safety standards. It’s the preferred building wire for multi-circuit applications, reducing installation time and labor costs compared to pulling individual conductors. Ideal for new construction electrical wiring or major renovations, this metal sheathed cable provides a clean, organized, and professional wiring solution. Our innovative armor coding system, with sequential footage markers and chevron indicators for conductor count, color, and recommended pull direction, further enhances job site efficiency. Choose this UL listed MC cable (UL 1569: E38918, UL 83: E15119) for your next project requiring a reliable multi-circuit wiring solution with dedicated neutrals and superior protection. This is the go-to industrial electrical cable when performance and code compliance are paramount.
Additional Features

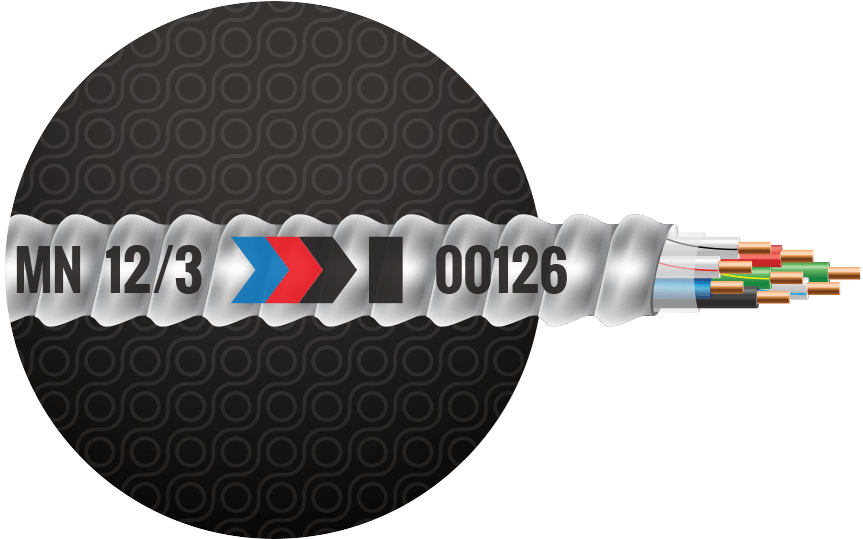

Metal-Clad Cable with two-, three- or four-circuit THHN/THWN-2 conductors, a dedicated neutral conductor for each phase, and a green insulated equipment grounding conductor. Intended for use in accordance with the National Electrical Code®. Conductor constructions have the insulated conductors cabled together with a separator tape, displaying the identification print legend, wrapped around the assembly. An interlocked aluminum armor is applied over the entire construction.
Conductors
Solid Conductors:
- Soft, uncoated copper per ASTM B3
Stranded Conductors:
- Uncoated copper per ASTM B3, B8, and B787
Insulation
THHN/THWN-2 PVC (polyvinyl chloride) with color-coded nylon (polyamide) covering
Jacket
Aluminum alloy armor applied over the complete assembly
Industry Standards
UL 1569: E38918
UL 83: E15119
ASTM B3, B8, and B787
NFPA 70 (National Electrical Code), Article 330
Federal Specification A-A59544
Surface Print
Armor Coding System:*
- Sequential Footage: shown every two feet
- Footage Marker: Black line = aluminum armor
- Chevron Colors: indicate number & color of conductors
- Chevron Direction: indicates recommended pull direction
- Cable Size: indicates wire gauge & number of conductors
*PATENT PENDING
