Applications

May be used as service-entrance conductors and in other applications where SE cables are permitted when installed as specified by NEC® Article 230. May be used in wet or dry locations at temperatures up to 90°C.

  • branch circuit wiring
  • feeders
  • service entrance
  • wet or dry locations
Conductors

Stranded conductors

  • Uncoated copper per ASTM-B3, ASTM-B8, and ASTM-B787

Phase Conductors

  • Type THHN conductors
  • Black PVC (polyvinyl chloride), rated to 90°C in wet or dry locations
  • Jacketed with black nylon (polyamide)
  • One phase conductor has a red stripe on its insulation surface for easy polarity identification

Neutral Conductor

  • White PVC (polyvinyl chloride), rated 90°C
  • Jacketed with white nylon (polyamide)

Equipment Ground Conductor

  • Bare stranded copper conductor
Jacket

Gray, sunlight-resistant PVC (polyvinyl chloride) jacket over the complete assembly

Industry Standards

UL 83 (insulated conductors)
UL 854 Service Entrance Cables, File No. 11098
ASTM-B3
ASTM-B8
ASTM-B787
Federal Specification A-A-59544
NFPA70: National Electrical Code®

*It is the sole responsibility of the end user to determine suitability of this product for its intended end use and application.

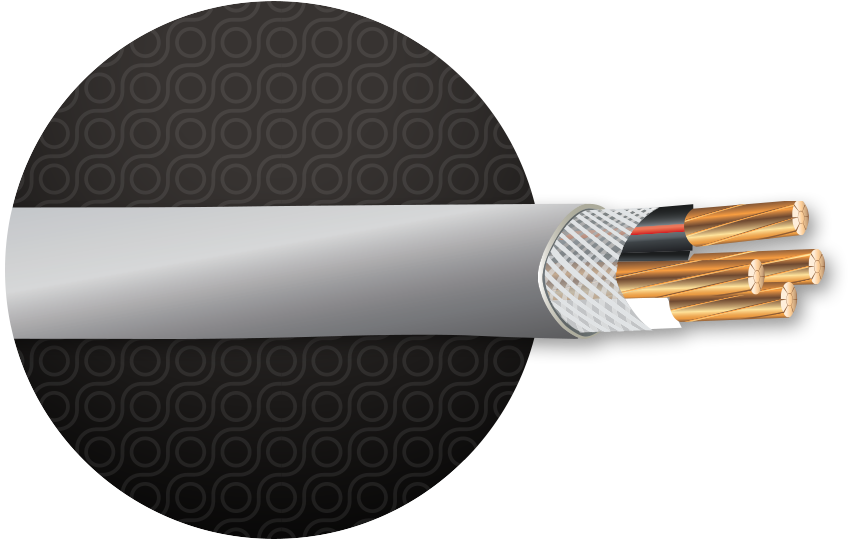

Assembly

Insulated and bare conductors are twisted together.
Glass-reinforced tape is applied over conductors.

Surface Print

Sample: TYPE SE CABLE STYLE R TYPE THHN OR THWN 3 CDRS 6 AWG 1 CDR 6 AWG 600V E11098-A (UL)
