Applications
Type SJOOW Flexible Cords are designed for wiring portable tools, portable appliances, equipment, small motors, and associated machinery. Highly flexible with good tensile strength, elongation and aging characteristics. SJOOW Cords are UL® and c(UL)® listed for indoor and outdoor use.
- gasoline & oil resistant
- small appliances
- sunlight resistant
- wet or dry locations
Conductors
Two, three, or four flexible stranded Class K copper conductors
Insulation
Heat-, moisture-, and oil-resistant EPDM rubber. Insulated conductors are cabled with wax-paper fillers.
Jacket
Black or yellow heat-, moisture-, and oil-resistant flexible CPE, extruded over entire assembly. A paper wrapping beneath the jacket facilitates easy removal.
Industry Standards
UL® Standard 62 (Flexible Cord)
NEC® Article 400
OSHA Acceptable
RoHS Compliant

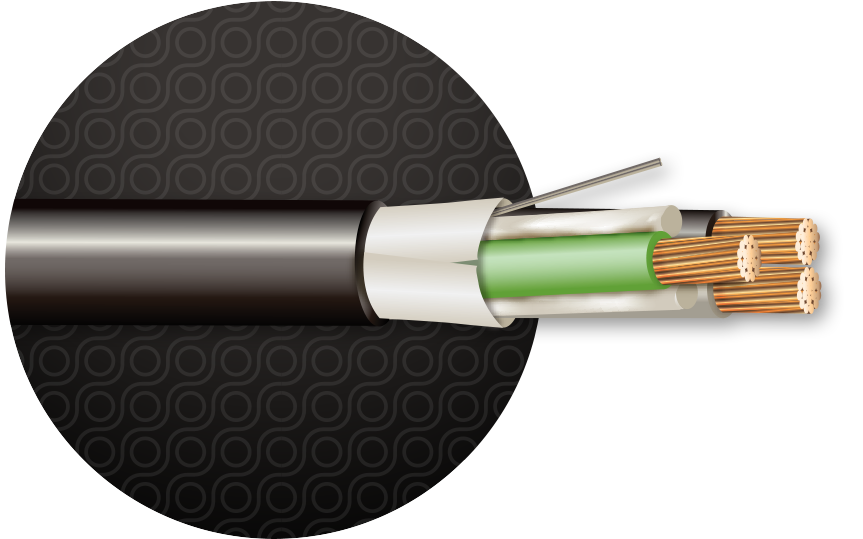

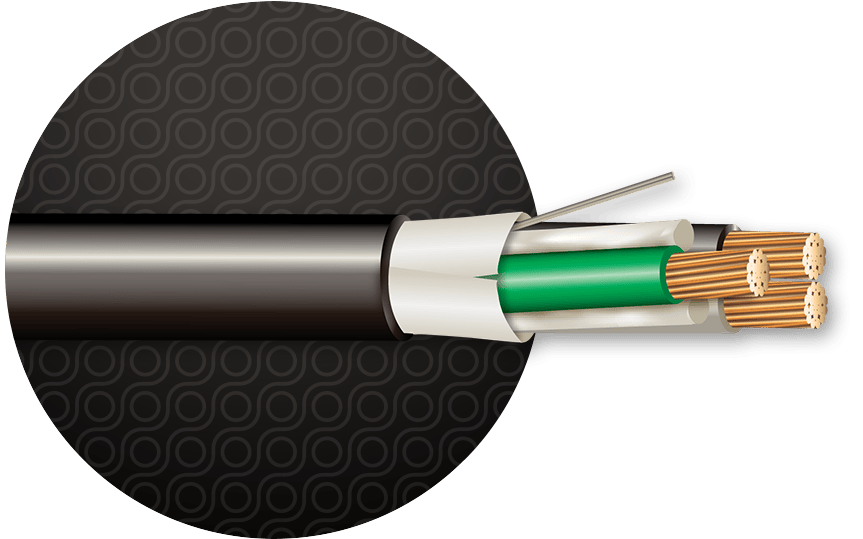

Assembly
Bare flexible stranded Class K copper conductors are insulated with heat-, moisture and oil-resistant EDPM rubber and then cabled with wax-paper fillers. Next, a paper separator is wrapped around the assembly for easy jacket removal. Finally, a black heat-, moisture- and oil-resistant CPE jacket is extruded over the entire assembly.
Sizes 18 through 10 AWG utilize fully annealed stranded bare copper per ASTM B-174.
Surface Print
Sample: (UL) C(UL) SJOOW 3/C 10AWG(7.37mm2) 90℃ FT2 300V E215210 100281-001
