Applications

Type SOOW Flexible Cords are designed for extra hard usage on industrial equipment, heavy tools, battery chargers, portable lights, welding leads, marine dockside power, power extensions, and mining applications. SOOW Flexible Cords are also UL® and c(UL)® listed for water resistance.

  • corrosive locations
  • gasoline & oil resistant
  • heavy tools
  • industrial
  • industrial equipment
  • sunlight resistant
  • wet or dry locations
Conductors

Three, four or five flexible stranded copper conductors

Insulation

Heat-, moisture-, and oil-resistant EPDM rubber. Insulated conductors are cabled with fillers.

Jacket

Black heat-, moisture-, and oil-resistant flexible CPE extruded over the entire assembly. A wrapping beneath the jacket facilitates easy removal.

Industry Standards

cULus® Listed for Outdoor Use
cULus® Listed for Continuous Submersion in Water
OSHA Acceptable
RoHS Compliant

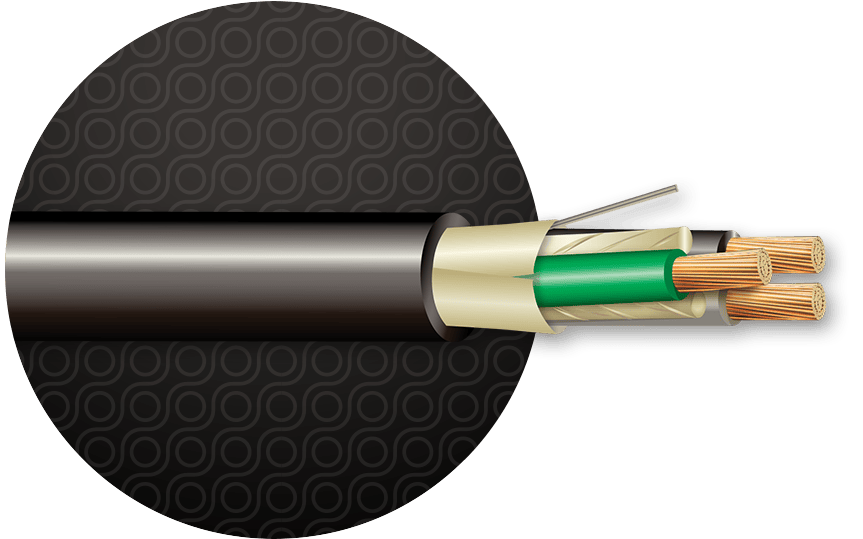

Assembly

Bare flexible stranded copper conductors are insulated with heat-, moisture- and oil-resistant EDPM rubber and then cabled with fillers. Next, separator is wrapped around the assembly for easy jacket removal. Finally, a black heat-, moisture- and oil-resistant CPE jacket is extruded over the entire assembly.

Surface Print

Sample: (UL) C(UL) SOOW 3/C 8AWG(8.37mm2) 90℃ FT2 600V E215210 100281-001
