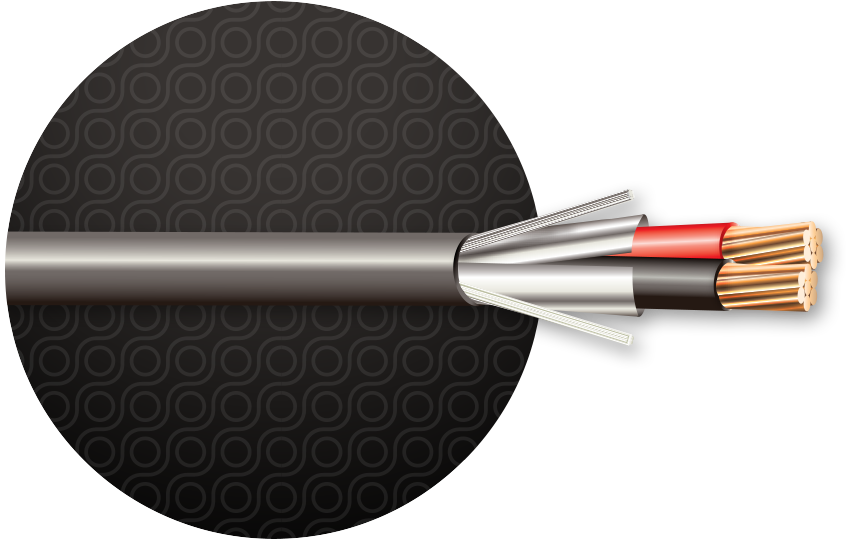

Shielded Riser Cable Security, Intercom, and Audio

Copper

Where To BuySpec Sheet PDF
Applications

Intercom/PA sytems, Sound/Audio systems.

Conductors

18 & 22 AWG 7 stranded bare copper

Insulation

SR-PVC .060 in O.D.

Jacket

0.014″ nominal wall gray polyvinyl chloride (PVC).

  • flame-retardant
Industry Standards

UL Listed Type CL3R/FPLR/CMR
C(UL) CMR
NEC Article 725, 760 and 800
UL 1666 Riser Flame Test
EU RoHS Directive
California State Fire Marshal Approved

Assembly

18 & 22 AWG conductors cabled together with a 2″ nominal left-hand lay. Nylon rip cord for ease of jacket stripping.

Surface Print

Sample: E111272 (01-12345 ) 22 AWG SHIELDED CL3R/FPLR (UL) OR CMR C(UL)US (MM/YY) ROHS 000002FT
