Product Features
Applications
For use within a well casing to supply current to a submersible pump. For use where the cable is not subject to repetitive handling required by frequent pump-unit service. Maximum conductor operating temperature of 75°C not exceeding 600 volts.
Conductors
Solid conductors
- soft, uncoated copper per ASTM-B3
Insulation
Color-coded PVC (polyvinyl chloride) rated 75°C (Type THW construction)
- Three-conductor: Black, yellow and red with green ground
- Two-conductor: Black and red with green ground
Industry Standards
UL 83
ASTM-B3
NFPA70: National Electrical Code®
Assembly

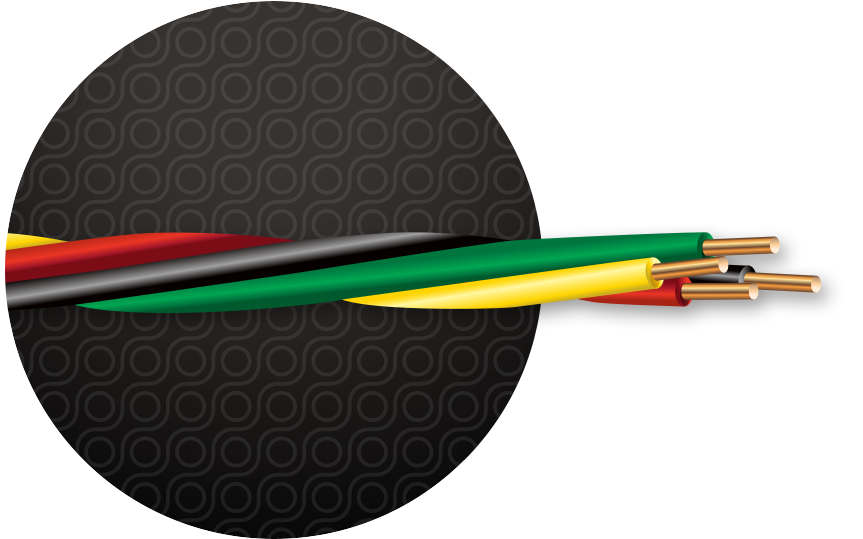

The insulated conductors are twisted together.
Surface Print
Sample: 12 AWG E39388 (UL) THW SUBMERSIBLE PUMP CABLE 600 VOLTS
