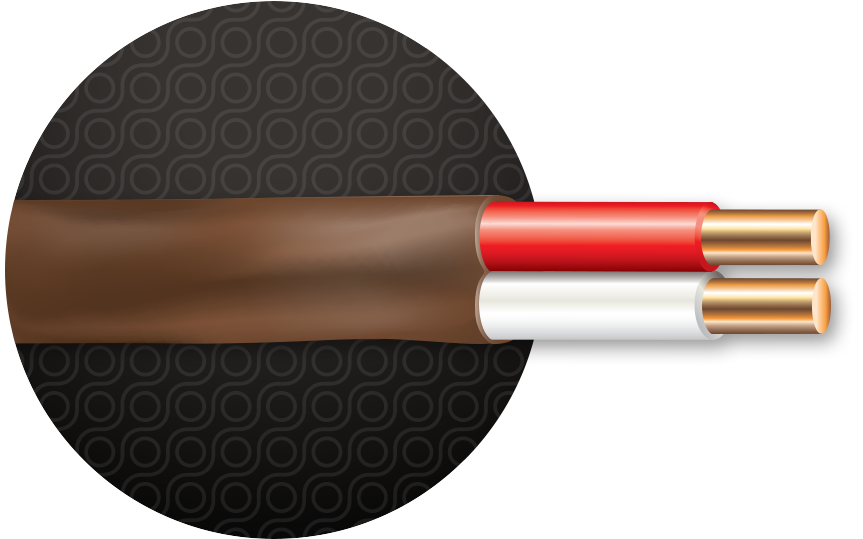

Thermostat Wire

Thermostat Wire

Class 2

Copper

Where To BuySpec Sheet PDF
Applications

Cerrowire® thermostat wire is a Class 2 power limited cable for use in thermostat controls application and bell and alarm systems.

  • door bell
  • fire alarm
  • service drop
  • sunlight resistant
  • thermostat
Conductors

Solid bare copper conductors. 2- and 3-conductor constructions are parallel. 2- to 7-conductor cable available in 18 AWG.

Insulation

Phase Conductor Insulation

  • 6 mils of polyvinyl chloride (PVC)
Jacket

Brown PVC rated up to 300-volts

Industry Standards

UL® Listed Type CL2R and CMR
C (UL) CMR
Sunlight resistant
UL 13 Power Limited Circuit Cables
UL 444, Communications Cables
UL 1666, Riser Flame Test
NEC<sup>®</sup> Article 725 and 800
EU RoHS Directive
OSHA Acceptable
California State Fire Marshal Approved

Surface Print

Sample: E11272 (01-12345) 18 AWG CL2R (UL) OR CMR C(UL)US SUN RES (MM/YY) RoHS 000002 FT
