Ensure safety and efficiency in your next electrical project with our premium Type MC Cable, featuring solid, soft-drawn, uncoated copper conductors in sizes 14 AWG, 12 AWG, and 10 AWG. This metal-clad cable is engineered for durability and ease of installation, making it the ideal choice for contractors and electricians working on residential and commercial building wiring, industrial power distribution, and extensive renovation projects.
Our Type MC Cable is constructed with high-quality THHN/THWN-2 insulated conductors, providing excellent thermal and moisture resistance for dependable performance in dry locations up to 90°C. Each cable includes a dedicated green insulated ground wire, ensuring a safe and reliable equipment grounding path for all your power, lighting installations, and branch circuit applications.
The robust interlocked aluminum armor offers superior mechanical protection for the conductors, safeguarding against potential damage during and after installation. This makes it a perfect solution for dry location exposed and concealed work, installations in cable trays, or approved raceways. This specification grade MC cable is designed for use in accordance with National Electrical Code (NEC) Article 330, giving you confidence in its compliance and performance for electrical inspections.
Rated for 600V, this versatile electrical cable is suitable for a wide array of demanding environments. The color-coded PVC insulation with a nylon covering simplifies conductor identification, while the separator tape with identification print legend further streamlines the installation process. Our innovative armor color coding system includes sequential footage markers every two feet and chevrons showing the conductor color, and recommended pull direction, enhancing job site productivity and accuracy.
Choose this dependable and easy-to-install metal clad cable for your critical electrical systems, ensuring a professional, code-compliant, and long-lasting installation. Order your Type MC Cable today for superior performance in your next multi-family residential, commercial or industrial project.
Additional Features
Metal-Clad Cable with two-, three- or four-circuit THHN/THWN conductors and a green insulated ground. Intended for use in accordance with the National Electrical Code®. Conductor constructions have the insulated conductors cabled together with a separator tape that displays the identification print legend wrapped around the assembly. An interlocked aluminum armor is applied over the entire construction.
- 600V
- 90°C Dry
Conductors
Solid, soft, uncoated copper per ASTM B3
Insulation
THHN/THWN-2 PVC (polyvinyl chloride) with color-coded nylon (polyamide) covering
Jacket
Aluminum alloy armor applied over the complete assembly
Industry Standards
UL 1569: E38918
UL 83: E15119
ASTM B3
FT4/IEEE 1202
NFPA 70 (National Electrical Code), Article 330
Federal Specification A-A59544
Surface Print

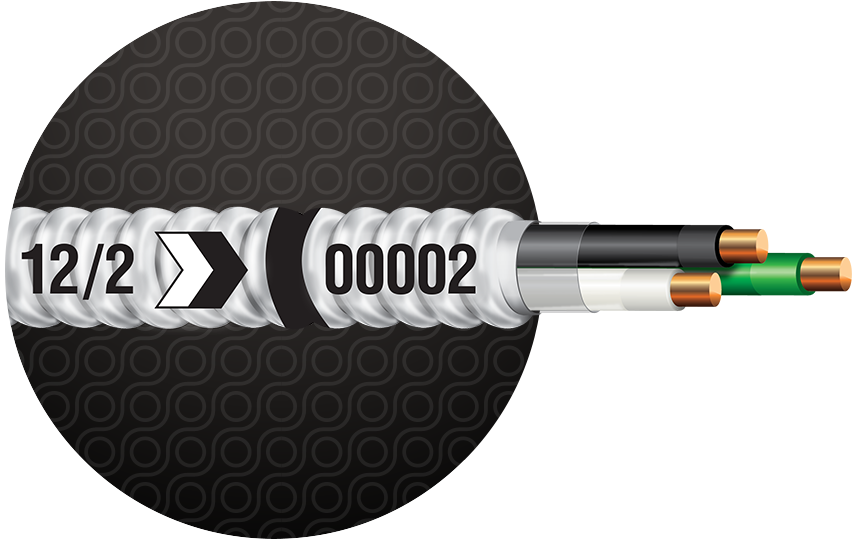

Armor Coding System:*
- Sequential Footage: shown every two feet
- Footage Marker: Black line = aluminum armor
- Chevron Colors: indicate number & color of conductors
- Chevron Direction: indicates recommended pull direction
- Cable Size: indicates wire gauge & number of conductors
*PATENT PENDING
