Product Features
Applications

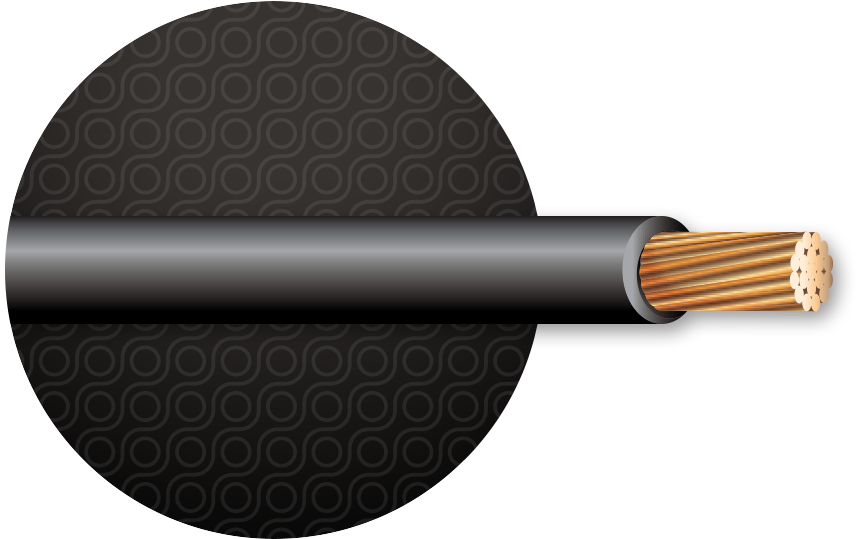

Thermoset-insulated copper wire suitable for direct burial or installation in conduit or cable tray. This 90°C building wire is for use in residential, commercial, and industrial applications. Intended for use in accordance with the National Electrical Code® in both wet and dry locations as USE-2 and rated 600 Volts. When used in accordance with the NEC® as RHH/RHW-2 in wet and dry locations, it is rated 1000 Volts. Conductors 1/0 AWG and larger are rated for use in cable trays. Sunlight-resistant in black for all sizes. Good choice for industrial applications where better insulation resistance to moisture and heat is desired. Rated as Gas and Oil Resistant II.
Conductors
Stranded conductors
- Uncoated, soft copper per ASTM B3 and ASTM B8
Insulation
Cross-linked polyethylene. Printed with True Sequential Footage.™
Industry Standards
UL 44: 125474 (RHH/RHW-2)
UL 854: 11098 (USE-2)
ASTM B3
ASTM B8
Federal Specification A-A-59544
NFPA 70 (National Electrical Code®)
NEMA WC 70 Construction Requirements
RoHS/REACH Compliant
Surface Print
Sample: CERROWIRE-U USE-2 600V OR RHH/RHW-2 1000V 250 KCMIL (127 mm2) GRII CT SR XLPE (UL)
(Additional information may be included, markings vary by size.)
